In PCB manufacturing, every tiny bit of accuracy counts, especially for the shiny gold fingers on the board’s edge. A small splash of solder or a dab of flux residue during gold plating or wave soldering can mess up these delicate connectors’ ability to conduct electricity. PET masking tape looks simple, but it’s a big deal in keeping gold fingers clean, sharp, and ready to work. This isn’t just about sticking tape on—it’s about making sure the whole circuit connection stays solid.

What Are PCB Gold Fingers Used For

Gold fingers are those bright, gold-plated connectors at the edge of a printed circuit board. They slide into another board or slot, carrying electrical signals like a bridge. Gold is picked because it conducts well and doesn’t rust, making it great for connectors that get plugged in and pulled out a lot, like GPUs, memory cards, or control modules.

Why Clean Contacts Matter in Performance

Gold conducts electricity great but is kinda soft. Any speck of dirt, rust, or leftover residue from manufacturing can mess up signal flow later. That could lead to shaky performance, data glitches, or even total connection failure. Keeping those contacts super clean isn’t just for looks—it’s about making sure the board works reliably for a long time.

Challenges in PCB Production

PCB factories deal with heat, flux, plating chemicals, and fast-moving machines. When boards go through plating or soldering, the areas near the gold fingers get hit hard.

Common Contamination Issues

• Solder bridging: Molten solder spills onto gold contacts.
• Flux contamination: Sticky residues mess with electrical connections.
• Chemical overrun: Plating solution sneaks past its boundaries.

Even tiny flaws here can cause big quality headaches later.

Limitations of Conventional Masking Tapes

Some factories still use paper or cheap masking tapes to cover gold fingers. Trouble is, these tapes don’t handle heat well. Their adhesives can melt, curl up, or leave sticky gunk behind. Peeling them off might damage the board surface or dirty up plating baths. It’s a classic case where saving a few bucks upfront leads to costly fixes later.

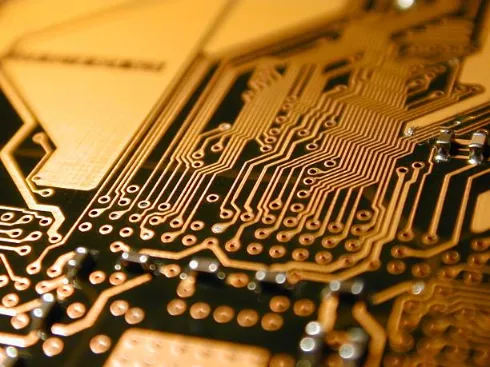

How PET Tape Protects During Plating and Soldering

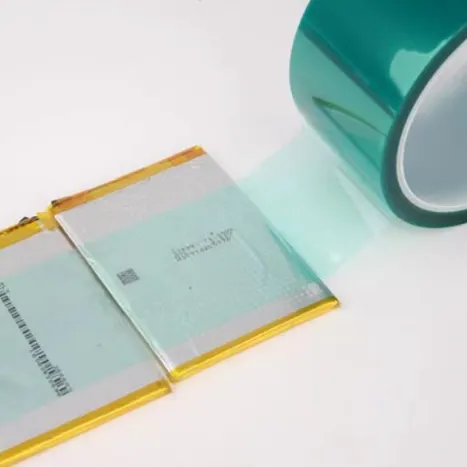

PET (polyester) tape is built for high-heat masking. It’s got a sturdy film base with silicone or acrylic adhesive that holds up against heat and chemicals. When put on right, it sticks flat, seals tight, and comes off clean after processing.

During Gold Plating

In gold plating, PET tape covers the parts of a PCB that shouldn’t get plated. It stops plating solution from spreading onto copper traces or solder pads. Once plating’s done, the tape peels off easily, leaving gold fingers with crisp, clean edges.

During Wave Soldering

In wave soldering, PET tape works like a heat shield. It keeps gold fingers safe from molten solder, flux, and other gunk. Even at temperatures around 200°C, the tape stays solid. It doesn’t melt, leave sticky bits, or lift at the edges. It does its job quietly while the production line keeps rolling.

Why PET Tape Works So Well

Core Material Properties That Make the Difference

• Heat resistance: Works fine up to 180–220°C.
• Clean removal: No sticky mess left after soldering.
• Dimensional stability: Doesn’t shrink or wrinkle when hot.
• Chemical resistance: Holds up against fluxes and solvents.
• Controlled adhesion: Sticks well but peels off easy.

Compared to paper tapes or low-end plastics, PET tape hits the sweet spot. It’s dependable, budget-friendly, and consistent. Engineers love stuff that works smoothly without fuss. PET tape’s got that vibe.

PET Tape vs Other Masking Materials

PI (Kapton) tape is tougher, but it costs a lot. PET tape gives the same clean results for way less, making it perfect for big PCB production runs. Paper tapes just can’t keep up—they soak up moisture, lose stickiness, and leave rough edges. PET tape gets the job done efficiently every time.

Best Practices for Using PET Tape

Practical Tips from the Production Floor

• Stick tape on a clean, dry PCB. Dust or oil ruins the stick.
• Don’t stretch the tape—it might warp when heated.
• Use tape wide enough for the finger section. Too narrow, and solder might sneak in.
• Peel slowly at a 45° angle after soldering to avoid scratches.
• Keep tape in a cool, dry spot to maintain its stickiness.

These little steps matter a ton. Good tape won’t fix sloppy work, but used right, it’s an easy way to protect pricey boards.

Why Many PCB Plants Rely on QKD PET Tape

What Makes QKD PET Tape Different

For PCB makers needing steady, high-heat masking, QKD tape offers PET tapes made just for electronics. Each roll is crafted for precise masking in plating and soldering setups. The surface is smooth, heat resistance goes above 200°C, and it peels off clean even after long exposure.

QKD tape’s PET tapes are used in small prototype labs and huge factories alike. Every batch delivers the same solid quality. QKD tape focuses on performance that saves time on fixes and keeps boards precise. Sometimes, better results come from smarter materials, not fancier machines.

Conclusion

As PCB designs get smaller and trickier, there’s less room for mistakes. Gold fingers need to stay spotless, conductive, and clean. PET tape is a proven, budget-friendly way to protect them during the toughest production steps. For manufacturers looking for reliable, industrial-grade masking, QKD tape’s PET tapes hit that mark.

Ready to Improve Your PCB Production Quality?

If you want cleaner gold fingers, fewer rejects, and smoother plating runs, choose a masking solution that’s proven to perform. QKD tape PET tape delivers the heat resistance, clean removal, and consistency your production line needs.

Contact QKD tape today to learn more about our PET tape specifications or request a free sample for testing in your PCB process.

FAQ

Q1: Why not use Kapton (PI) tape instead of PET tape?
PI tape handles higher heat, but it’s expensive and often overkill for regular PCB soldering. PET tape does the job just fine at a lower price.

Q2: Does PET tape leave adhesive residue on gold fingers?
Nope. If you apply and remove it right, PET tape comes off clean, even after wave soldering.

Q3: Can PET tape handle reflow soldering temperatures?
Most PET masking tapes are good up to 200–220°C, which works for wave soldering and some reflow processes.

Q4: Is PET tape reusable?
No way. Once you peel it off, the adhesive weakens. It’s made for one-time use.

Q5: How should PET tape be stored?
Keep it in a cool, dry place, away from sunlight. That way, it stays sticky and peels right.
